- FEATURES :

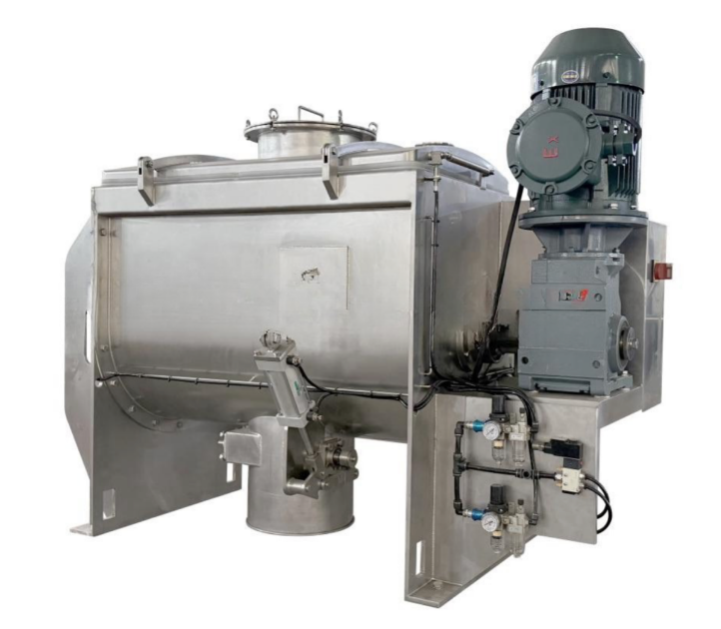

The Ribbon Mixer 500L is designed to deliver fast, uniform, and efficient mixing for a wide range of powder and granular materials. Equipped with a double ribbon agitator, this machine ensures consistent blending results by moving materials both radially and laterally within the mixing chamber.
- TECHNICAL PARAMETER :
| PARAMETER | SPECIFICATION |
| Volume | 500L |
| Max Capacity | 300Liter/batch |
| Speed of mixing | 65 rpm |
| Cutter speed | 50-1500 rpm |
| Hybrid spindle | 89X 12 mm |
| Blade support shaft | 32X6 mm |
| Mixing power | 7.5KW |
| Discharge valve | 360 with pneumatic jacking cylinder |
| Weight | 900kg |
3. SAFETY DEVICES
| NO. | ITEM | FUNCTION |
| 1. | Emergency stop | Stop main machine in case of emergency situation |
