FEATURES

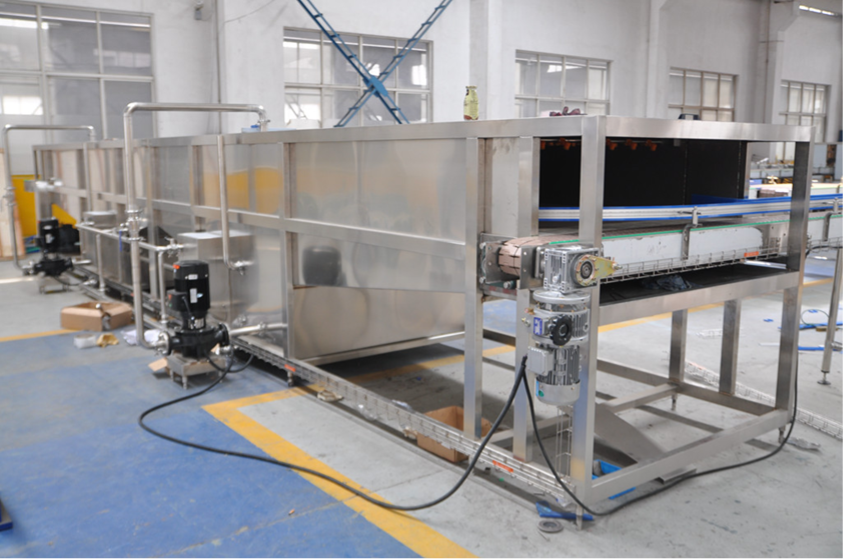

This machine adopts a three section steam recycling heating design. The water spraying water
temperature shall be controlled around 58 degrees. After the bottle go out, the temperature will
be around the 20 degrees. Users can fix the temperature according to needs. At the end of the
warmer, it is equipped with blower to blow dry the bottles. It is equipped with temperature
control system. Users can adjust the temperature by himself.
- The conveyor is frequency controlled.
- All nozzle and spray tubes are made of stainless steel and spray evenly.
- The catchment flume is made of stainless steel and equipped with a level alarm device.
- The spray tunnel has a spray cooling recycling water pump and steam adjustment valve.
- Steam consumption is adjusted according to the temperature.
- The inlet and outlet of the bottle warming machine uses 3-lane conveyor to avoid bottle stacking.
TECHNICAL PARAMETER
| NO. | PARAMETER | SPECIFICATION |
| 1. | Dimension | 1000X1650X1800mm |
| 2. | Material | Stainless steel 304 |
| 3. | Weight | 3500kg |
| 4. | Capacity | 12000bph |
| 5. | Working temperature | 58C |
SAFETY DEVICES
| NO. | ITEM | FUNCTION |
| 1. | Emergency Stop | Stop main machine in case of emergency situation |
