- FEATURES :

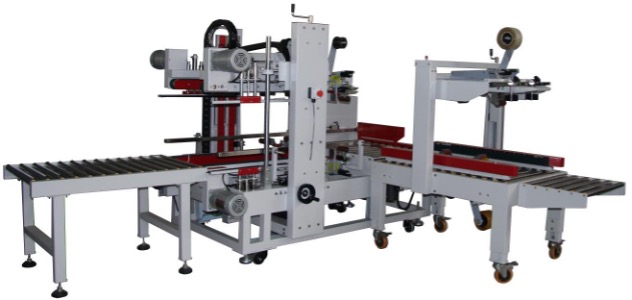

- This series is designed for single-machine, shaped automatic sealing and packaging operations
- Transmission design method: Adopting left-right conveyor transmission for box feeding, taping, sealing, and packaging operations
- Within the applicable carton specifications, manual adjustment can be completed within 1 minute
- The mechanical components are precise and durable, ensuring stable operation and long service life
- Ensure better aesthetics, faster speed, and higher efficiency compared to manual tape application
- Belt : Guide bar conveyor belt, wear-resistant, with a long service life The drum is crafted from stainless steel with precision workmanship
- The steering system utilizes a chain to drive the roller to rotate, featuring a low friction coefficient Load-bearing capacity of 50kg
- TECHNICAL PARAMETER :
| TYPE | SPECIFICATION |

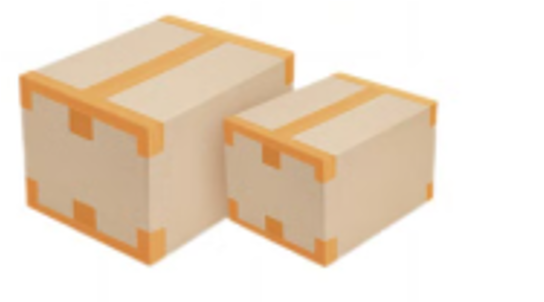

| Applicable box type | L200-*W150-500*H150-500 mm Countertop height: H600-750 mm |
| Countertop height | H600-750 mm |
| Sealing speed | 1200 boxes / hour |
| Mechanical dimensions | L1065*W873*H1250 mm |
| Power supply | 1PH 220V 50/60HZ 0.24KW |
| Applicable tape | W48-60-75mm*L1000 yards |
3. SAFETY DEVICES :
| NO. | ITEM | FUNCTION |
| 1 | Emergency stop | Stop main machine in case of emergency situation |
